We are a manufacturer of concrete electric pole machines and provide turnkey basis service for overseas concrete electric pole plant. One complete concrete spun electric pole production line equipment consists of concrete pole mold, centrifugal spinning machine , concrete mixing station, steel processing equipment, steam curing system etc. All concrete pole equipment are designed with scientific and reasonable ways and customized according to the requirements of customers.

As most important concrete pole plant production machines, centrifugal spinning pole machine is used to produce prestressed and reinforced concrete spun poles widely used in East Africa and Southeast Asia countries.
The centrifugal spinning machine consists of foundation, wheels, shaft pedestal, motor, control cabinet and drive shaft.

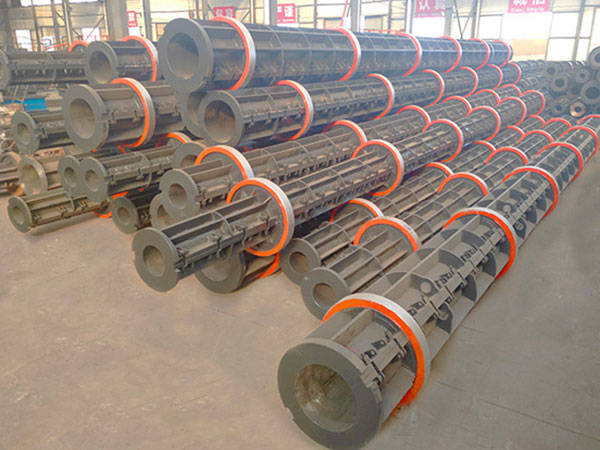

Haiyu Concrete Spun Pole Mold is manufactured and processed with unique technology. 10mm steel plate is used for mold cylinder , casting steel is widely used in the running wheels and joint flange. 18m overall lathe is the longest in Asia area which can manufacture concrete spun pole mold with max.

• Prestressed Concrete Electric Pole Mould
• Square Concrete Pole Mould
• Solid Rectangle Concrete Pole Mould

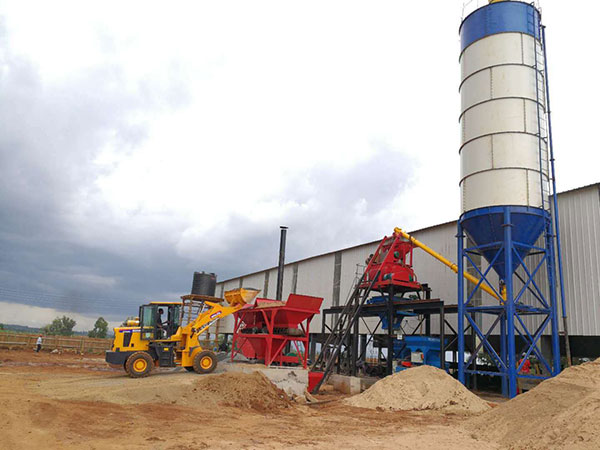

A complete concrete batching plant is composed of cement mixer, concrete batching machine, cement silo, screw conveyor and control cabinet. According to the productivity of concrete poles, the concrete plant is available in two types: JS500 and JS750.

• Concrete Batching Plant
• Tension Jack
• Buttonhead Forming Machine
• Concrete Dosing Machine
• Gantry Crane / Overhead Crane
• Reinforcing Cage Welding Machine
• PC Bar Straightening and Cutting Machine
• Steam Curing System

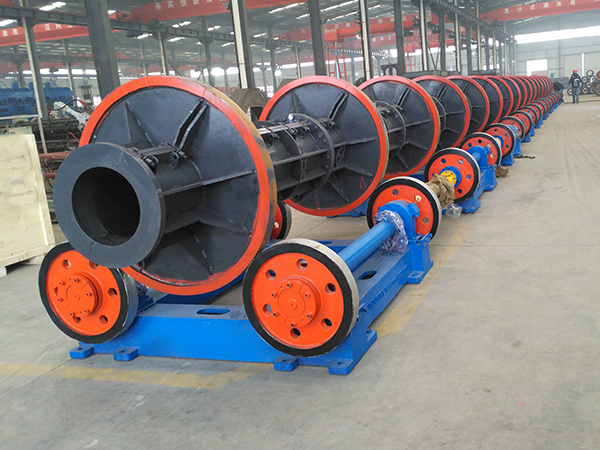

Concrete Pile Mold is most important equipment for concrete pile production. Not only a forming mold but also a equipment bearing pre-tensioning force. Concrete pile mold is easily deform and damaged because of vibration force, centrifugal force, heat stress and fatigue stress. So, when designing , besides precise measurements , simple structure and convenient assembly, concrete pile mold also needs enough strength and rigidity .

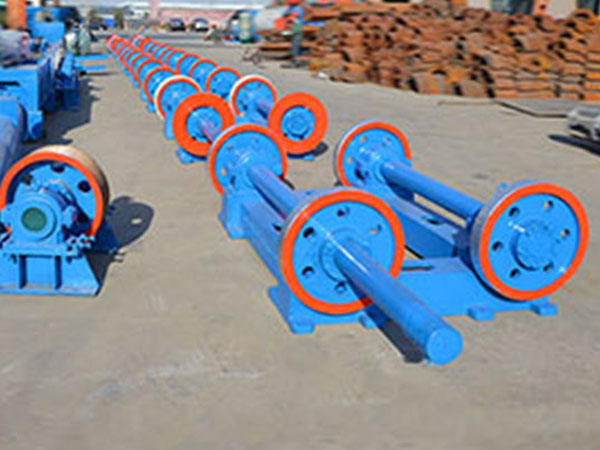

Operated by a remote-controlled continuously variable motor, the concrete pile centrifugal spinning machine runs smoothly and has a flexible speed range. It's a kind of forming equipment for producing high-quality prestressed concrete piles, circular, square and other concrete products with various diameters and length.

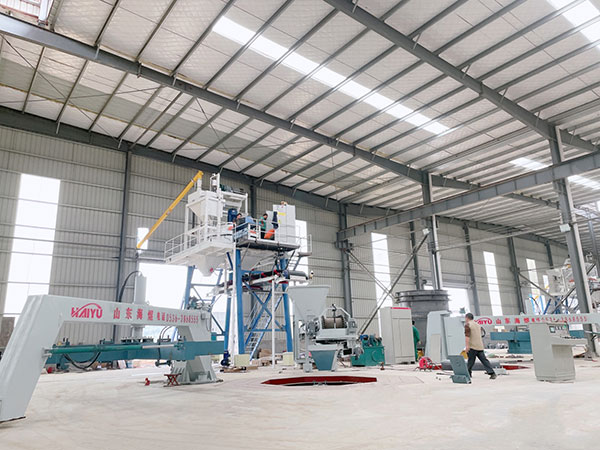

This concrete pipe making machine combines vibrating core and is used with a mold to prepack and vibrate concrete within the mold to produce concrete pipe.
The core molding vibrating concrete pipe production process is that the inner and outer molds are vertically erected on the bottom bracket (disk) in the pit ...

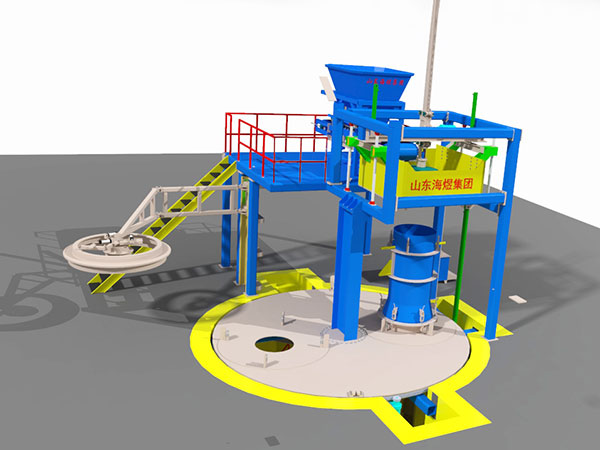

The Ф300-Ф1500 automatic core-lifting mandrel vibration pipe making equipment not only retains the advantages of original mandrel vibration process of good product quality, safety, environmental protection, energy saving, and immediate demoulding, now but also adopts a unique core-raising technology, with radial extrusion, which gives it the following advantages and features.

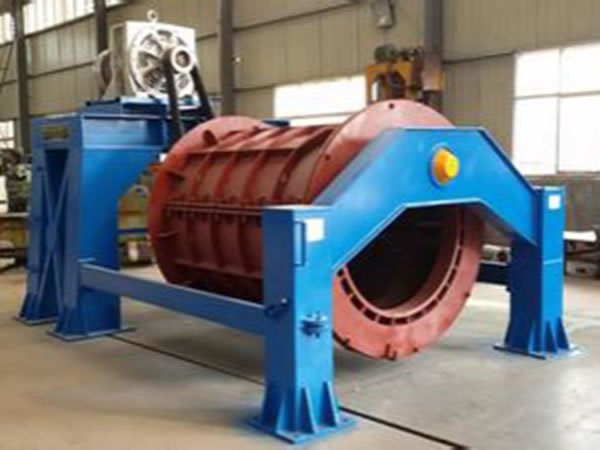

In the roller concrete pipe machine, the main body is assembled by 8-10mm thick steel plates. The roll shaft uses seamless steel pipe, with a thickness less than 30mm. As for the moveable frame, it's made from 12 mm thick steel. To ensure stable operation, the variable speed motor used is from famous brands and all devices in the power distribution cabinet are introduced from Schneider, with high quality and reliable performance.

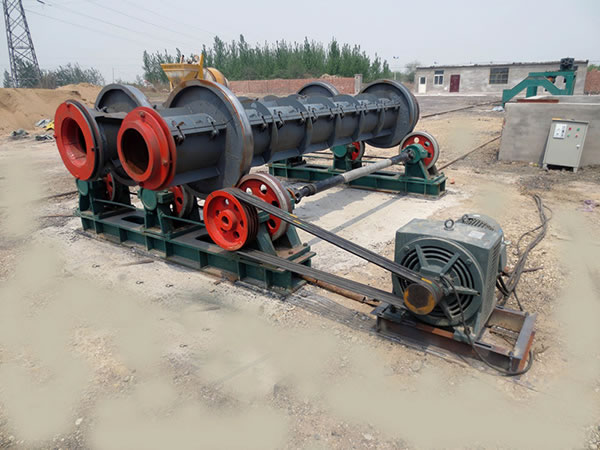

As being a commonly-used concrete pipe forming machine, the centrifugal concrete pipe machine is a great choice for the manufacture of plain-end, tongue-and-groove and bell-and-spigot pipes. If demanded, the machine can also be customized. While working, the concrete is spun and formed under the triple influence of centrifugal force, rolling pressure and vibration, leading to high intensity and bearing capacity.

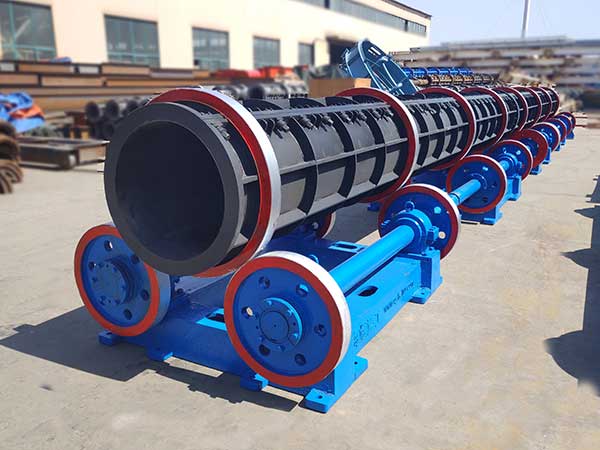

In the manufacture process of rcc concrete culvert pipes, rcc concrete pipe mold rotates under the action of centrifugal force, concrete is distributed evenly and covered on the inner wall of concrete pipe mold. Rcc concrete pipe mold is an easy-to-operated and efficient device for producing rcc concrete pipes.

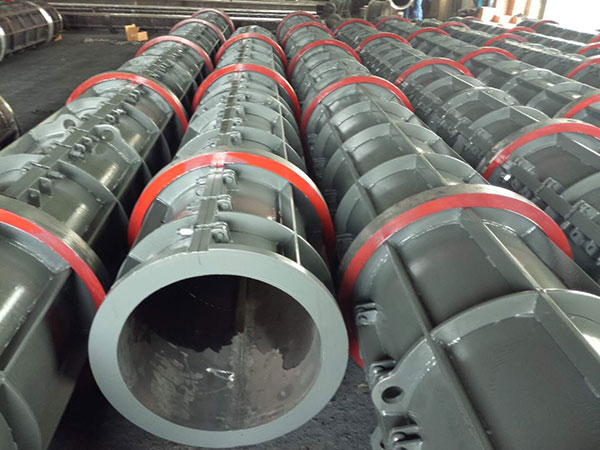

This roller type concrete pipe form is well suited for the manufacture of concrete water pipes that are 2 meters long and have an inner diameter of 200-2000 mm. Equipped with advanced technology, the concrete pipe form has a smooth inner wall. According to the connection ways, the pipe form can be divided into rigid joint and pin joint type.

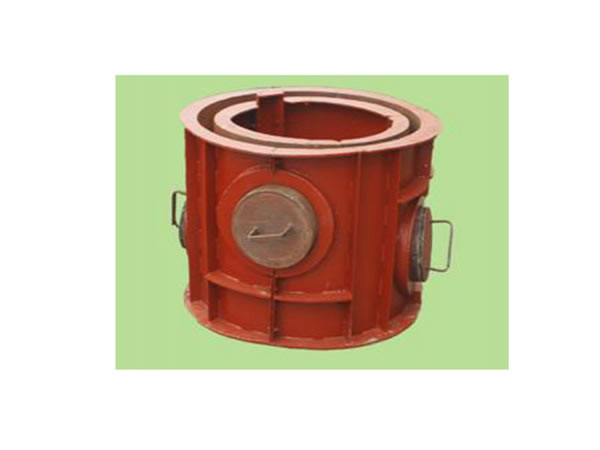

The concrete manhole form is configured with an external housing, internal chamber and flanges. Each part is connected with Φ 12mm bolts, easy to install. The manhole form plate is 5mm thick while the stiffener is 10mm thick. Concrete manholes produced by this form possess a tensile strength of over 400 MPa, ductility of 18%, bearing capacity of more than 2 tons.

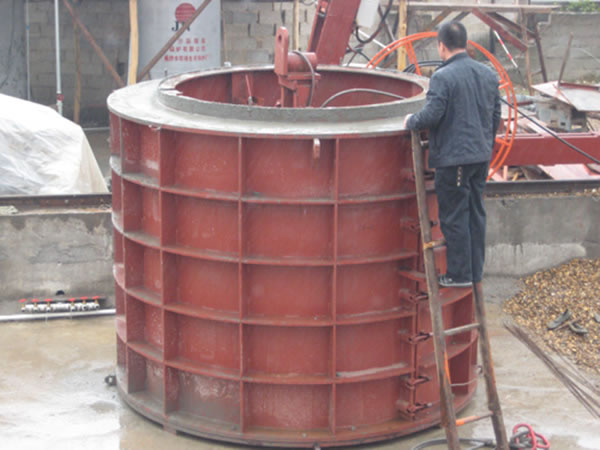

The vertical vibrating concrete pipe mould consists of a steel housing and a steel inner chamber mounted with a vibrator. The housing is made of two pieces of 5mm thick semicircular columns (3 pieces for 20m-diamter molds) that are connected and fastened by pins. For the inner chamber, its lower mouth is a littler smaller than the upper mouth, to make demolding easy.
