Vertical Vibrating Concrete Pipe Mould

Concrete Pipe Form, Concrete Pipe Mold, Concrete Pipe Manufacture Facilities

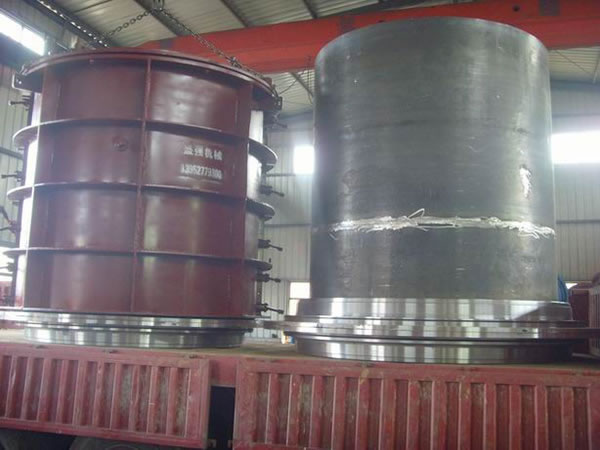

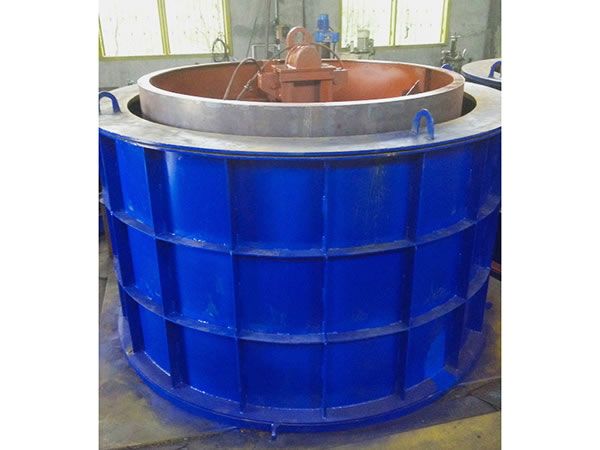

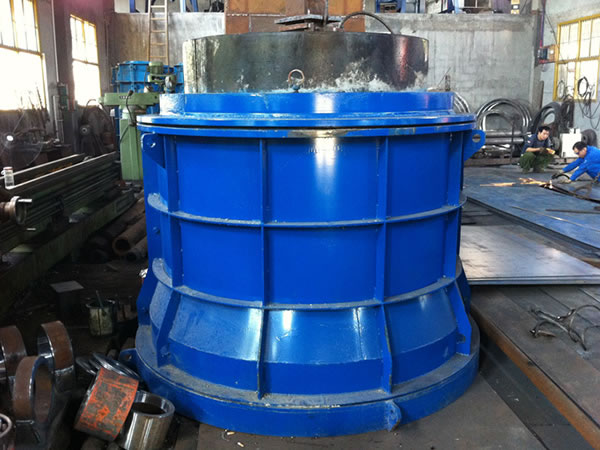

The vertical vibrating concrete pipe mould consists of a steel housing and a steel inner chamber mounted with a vibrator. The housing is made of two pieces of 5mm thick semicircular columns (3 pieces for 20m-diamter molds) that are connected and fastened by pins. For the inner chamber, its lower mouth is a littler smaller than the upper mouth, to make demolding easy.

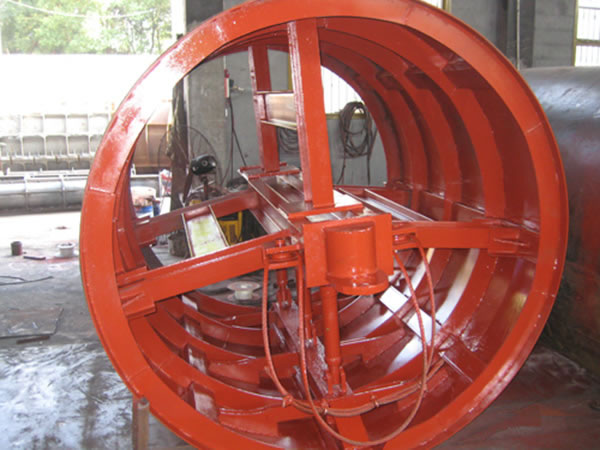

Internal Structure

Outstanding Advantages of Vertical Vibrating Concrete Pipe Mould
1. The concrete pipe mold is rigid enough and will not easily deform. It also greatly guarantees the pipe dimensions are within the error range.
2. The housing is connected and fastened by pins, with easy installation and dismounting method.
